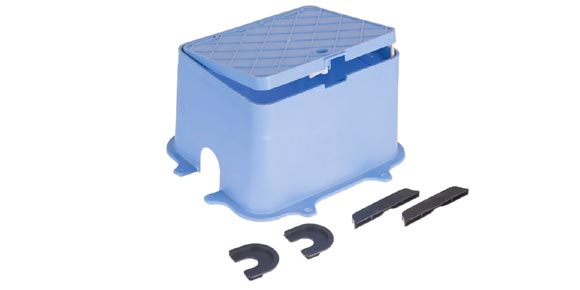

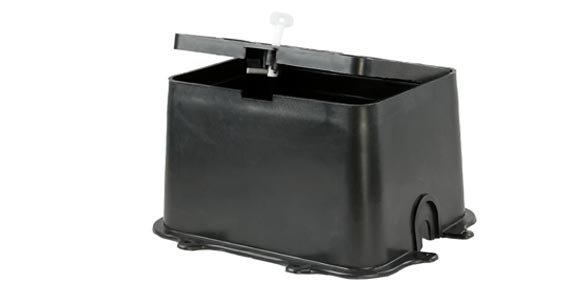

WATER METER BOX

WATER METER BOX 1

---

• Available in 3 different sizes - can accommodate AMR unit.
• Made of PP with UV resistant high impact pigmented fibre polymer.
• Long lasting-tested to bear pedestrian load.
• Bullets Lock and sealing arrangement, flaps to avoid entry of reptiles and mud, Pipe gripper to hold the pipe against vibration, no metallic part -except SS 304 spring-for weather proof life.
• Suitable for pipe & water meter from 15 to 40 mm.
• Easy to install- No need of masonry work and saves on cost and time.
• Suitable to mount-Both on (under/over) ground or on wall and hence can be used for vertical as well as horizontal water meters.
• Removable lid to facilitate easy maintenance.
• Bullets of sealing-locking and gripping arrangements to avoid unauthorized fiddling with water meter.

Features	Parts	Specification
MOC	Main Body/lid	PP with UV resistant high impact pigmented fibre polymer.
	Spring	SS 304
Sizes	A	App: 280 mm L x 227 mm W x 175 mm H
	B	App: App: 396 mm L x 190 mm W x 160 mm H
	C	App: 510 mm L x 260 mm W x 255 mm H
Dead Load testing		100 kg
Colour		Blue/Black
