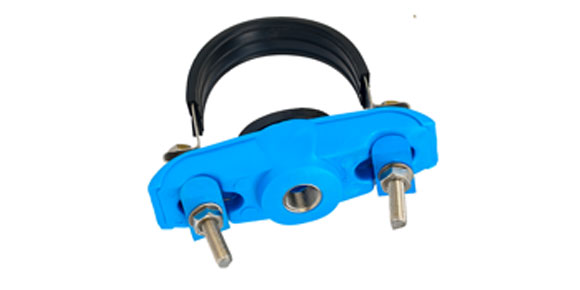

COMPOSITE SADDLE SS STRAP

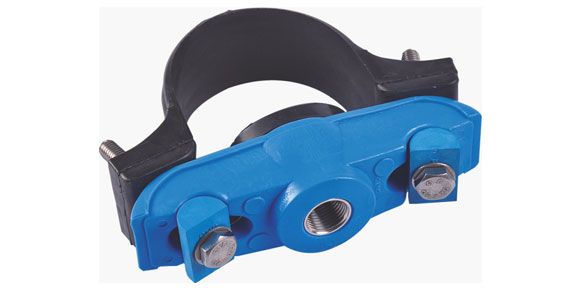

COMPOSITE SADDLE PLASTIC STRAP

---

• Indigenous sturdy design - tested for PN16 rating for water pressure.
• Suitable for DI/CI/HDPE pipe.
• Suitable for pipe diameters from 80 mm to 250 mm.
• No skilled labour required for installation; saving cost and valuable time.
• Sturdy and durable material for main body, strap, rubber seal etc.
• Outlet sizes - from 1/2" to 1".
• Overall product design saves inventory carrying & installation cost.
• BS 6920 WRAS Certified: Suitability of non-metallic products for use in contact with water intended for human consumption with regard to their effect on the quality of the water.

Features	Parts	Specification
MOC	Main Body	Composite material (HDPE embedded with SS plastic plate for reinforcement)
	Strap	SS Strap With Rubber Sleeve / Plastic Strap
	Threading	SS / Brass
	Seal	EPDM/Nitrile
	Other hardware	SS 304/ GI
Sizes	Outlet sizes	1/2" up to 1"
	Suitable for pipe dia.	80 mm to 250 mm
Pressure Rating		PN16
Color		Blue
