ELECTRO FUSION TAPPING SADDLE

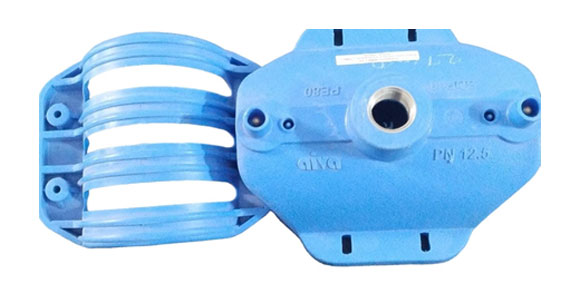

ELECTRO-FUSION TAPPING SADDLE WITH BOTTOM SADDLE
- Sturdy design.
- Available from 63 mm to 225 mm pipe diameter.
- Easy to install.
- Totally indigenous design and manufacturing process.
- Tested for PN16 rating for water pressure.
- Leak-proof; thus ensuring durability.
- PE Pipe compatibility as per ISO: 4427.
- All saddles come with barcodes stickers, which are compatible with all reputed “Fusion Machines”.
- BS 6920 WRAS Certified: Suitability of non-metallic products for use in contact with water intended for human consumption with regard to their effect on the quality of the water.
- Complies with BS EN 12201-3:2003 and IS 15927 (part 3): 2011 standards for endurance, durability, product performance and pressure testing.
- Migration test as per IS standards IS 9833:2014, IS 9845:1998 with reference to IS 10910 & BS 6920 for Raw material Polypropylene and its co-polymer is safe to use in contact with foodstuff, pharmaceuticals and drinking water. Tested and certified by international certifying agencies.(NABL Accredited)
| Features | Parts | Specification |
|---|---|---|
| MOC | Main Body | HDPE (PE 80/PE-100) |
| Threading | Ss304/Brass | |
| Terminal Pins | Brass | |
| Size | Outlet | 1/2", 3/4", 1" |
| Suitable for Pipe dia | 63mm to 225mm (Top Loader Type)
63mm to 110mm (Bottom Belt Type) |
|
| Color | Blue/Black |
Certifications
